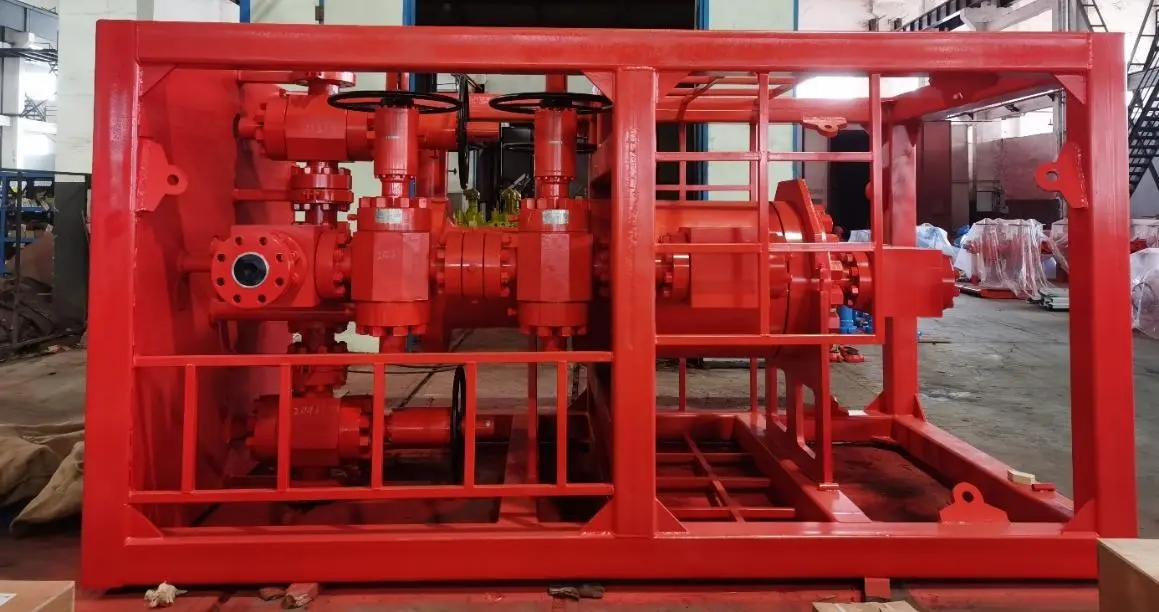

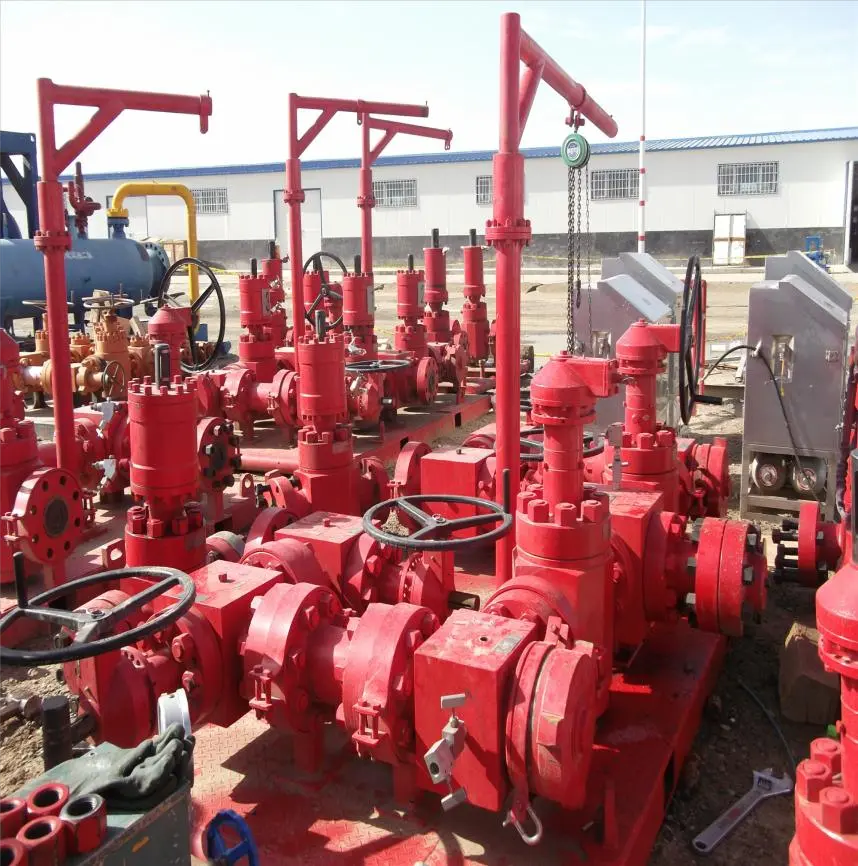

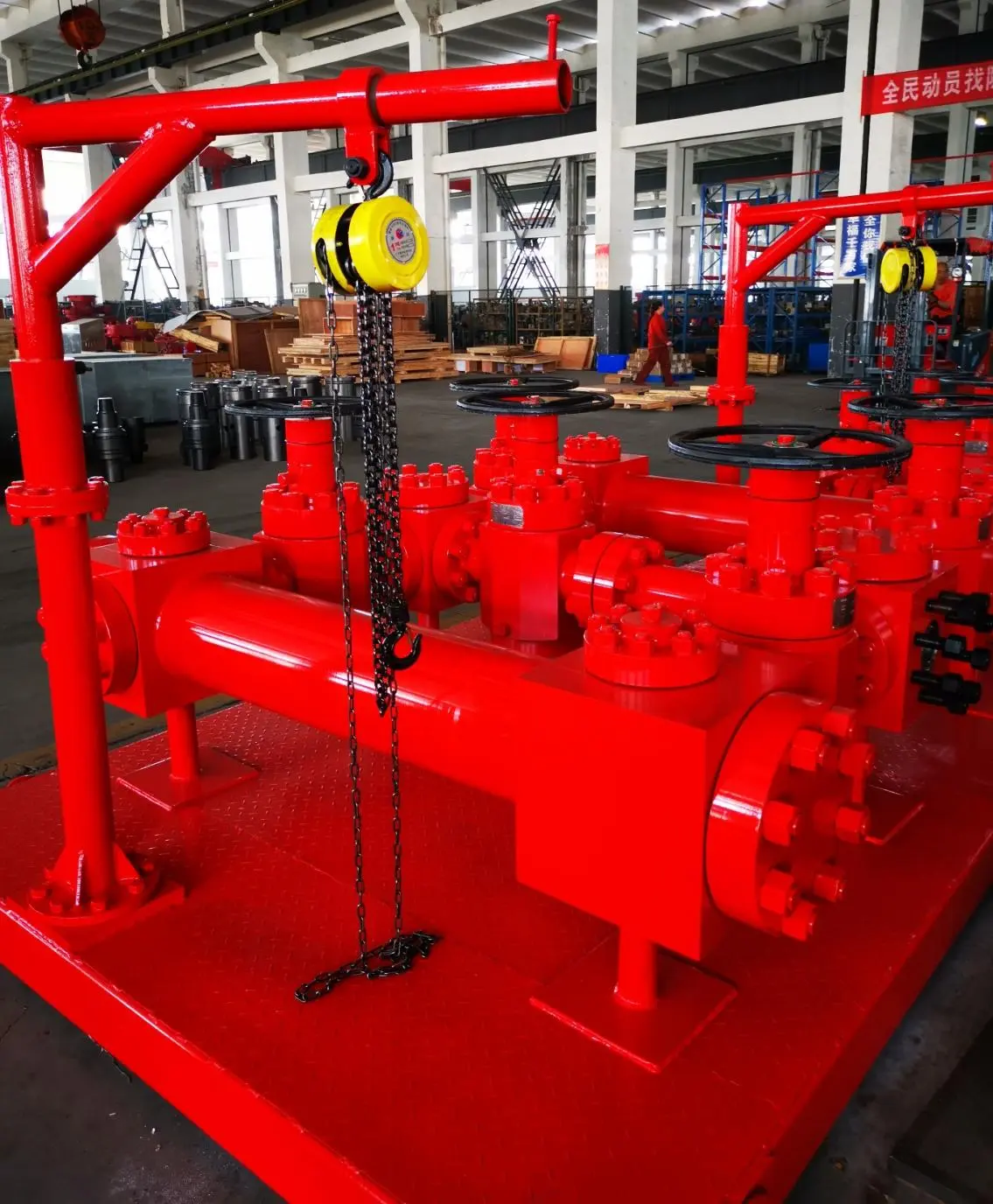

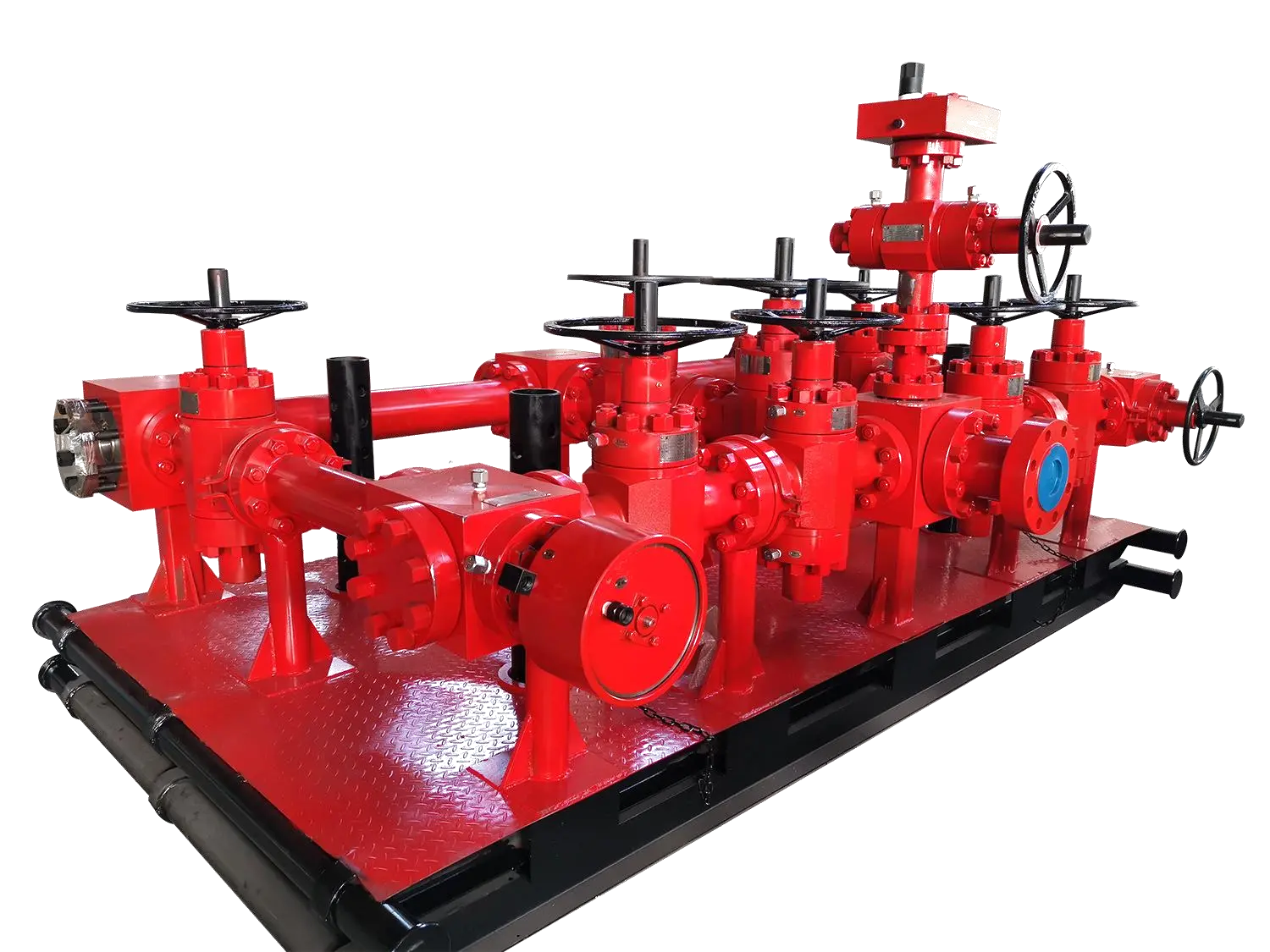

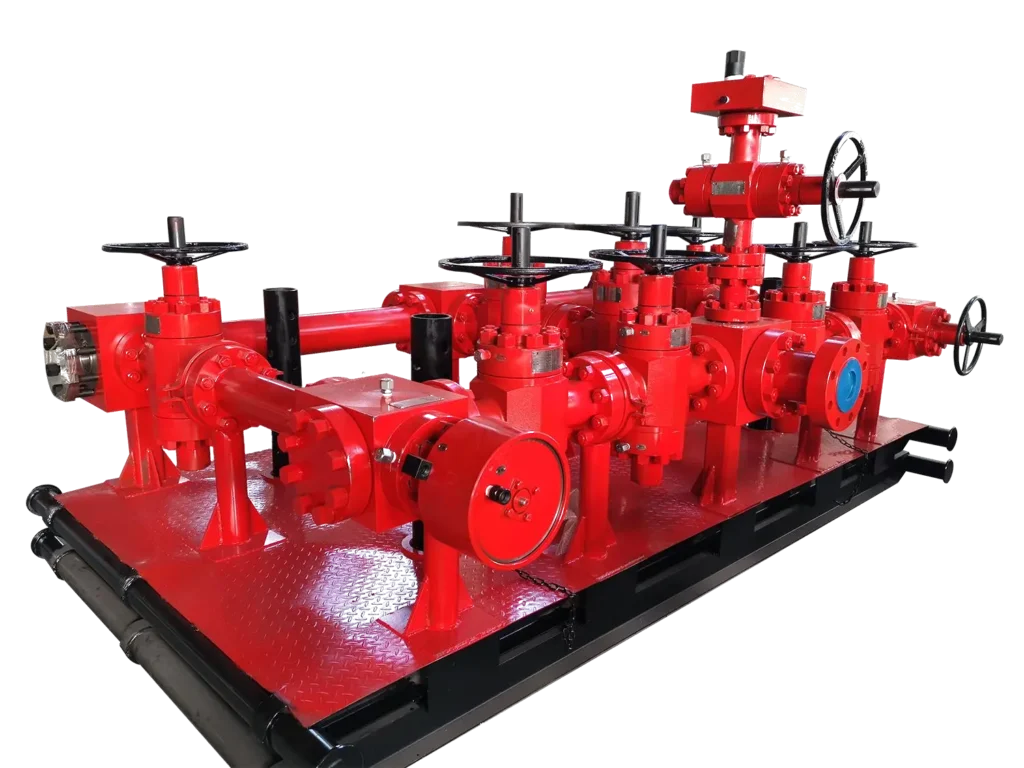

API 16C High-Pressure Choke and Kill Manifold System

  • Severe fluid erosion, solid particles, and extreme cyclic pressures during well control operations often cause rapid wear on choke valves, downstream piping, and control systems.

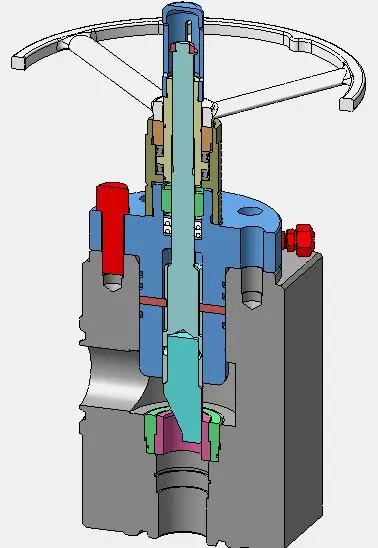

  • Built in strict accordance with API Spec 16C and NACE MR0175, we supply complete API 16C Choke & Kill Manifold skids alongside rapid-replacement critical components, including tungsten-carbide drilling choke valves, anti-erosion downstream nipples, and remote control consoles.
  • Ideal for onshore/offshore well control, managed pressure drilling (MPD), underbalanced drilling, and fast-turnaround MRO replacement parts.
Request a Quote Downloads

Main Advantage & Solution

  • Rapid washouts and erosion on downstream piping during high-pressure pressure drops 10,000 – 25,000Psi).
    Solution: Downstream Anti-Erosion Nipples feature tungsten carbide inlays and flow-regulations to protect downstream manifolds, extending service life by over 3x.
  • Severe corrosion of control components on coastal or offshore rigs.

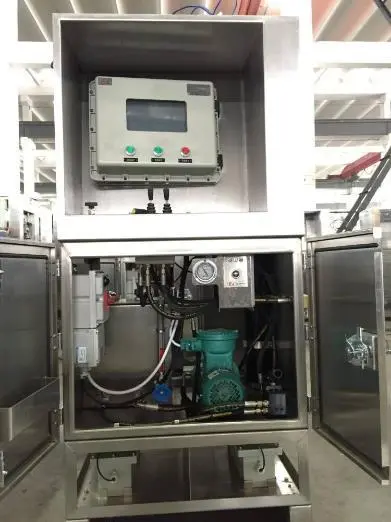

    Solution: Complete stainless steel console housing and integrated internal hydraulic routing ensure maintenance-free service in salt-spray conditions.

Application Scenarios

  • Well Control & Blowout Prevention: Real-time pressure balancing and fluid kill operations during kick events.
  • Managed Pressure Drilling (MPD) & Underbalanced Drilling: Fine-tuned pressure throttling for precision wellbore pressure management.
  • Rig MRO & Field Replacement: Direct-fit replacement chokes, erosion nipples, and control cabinets for existing drilling rig upgrades.

Technical Specifications

SpecificationDetails
Working Pressure2000 Psi to 25,000 Psi
Bore Sizes2-1/16″ to 4-1/16″
Configuration TypeSingle-wing, Dual-wing, Multi-wing
Control PowerActuation Options: Manual, Hydraulic, Pneumatic/Electric Control Console.
Product Specification LevelPSL 3 ~ PSL 4
Material ClassDD, EE, FF, HH (Severe Sour & Corrosive Service)
Performance RequirementPR1 ~ PR2
Temperature ClassK.X ( -60℃to 180℃) / Min operational down to-40℃)

Our Advantages

Factory Strength

As a premium API 6A, 16A, and 16C certified manufacturing powerhouse, our facilities are equipped with heavy CNC machining clusters and automated anti-corrosion alloy cladding systems, fully backed by an in-house CNAS laboratory capable of up to 300MPa pressure tracking and internationally witnessed PR2 gas performance testing.

Customization Service

Customized manifold skid footprint, multi-wing branch layouts, OEM-interchangeable choke valve trims, explosion-proof remote console panels, and rapid-dispatch MRO replacement kits.
