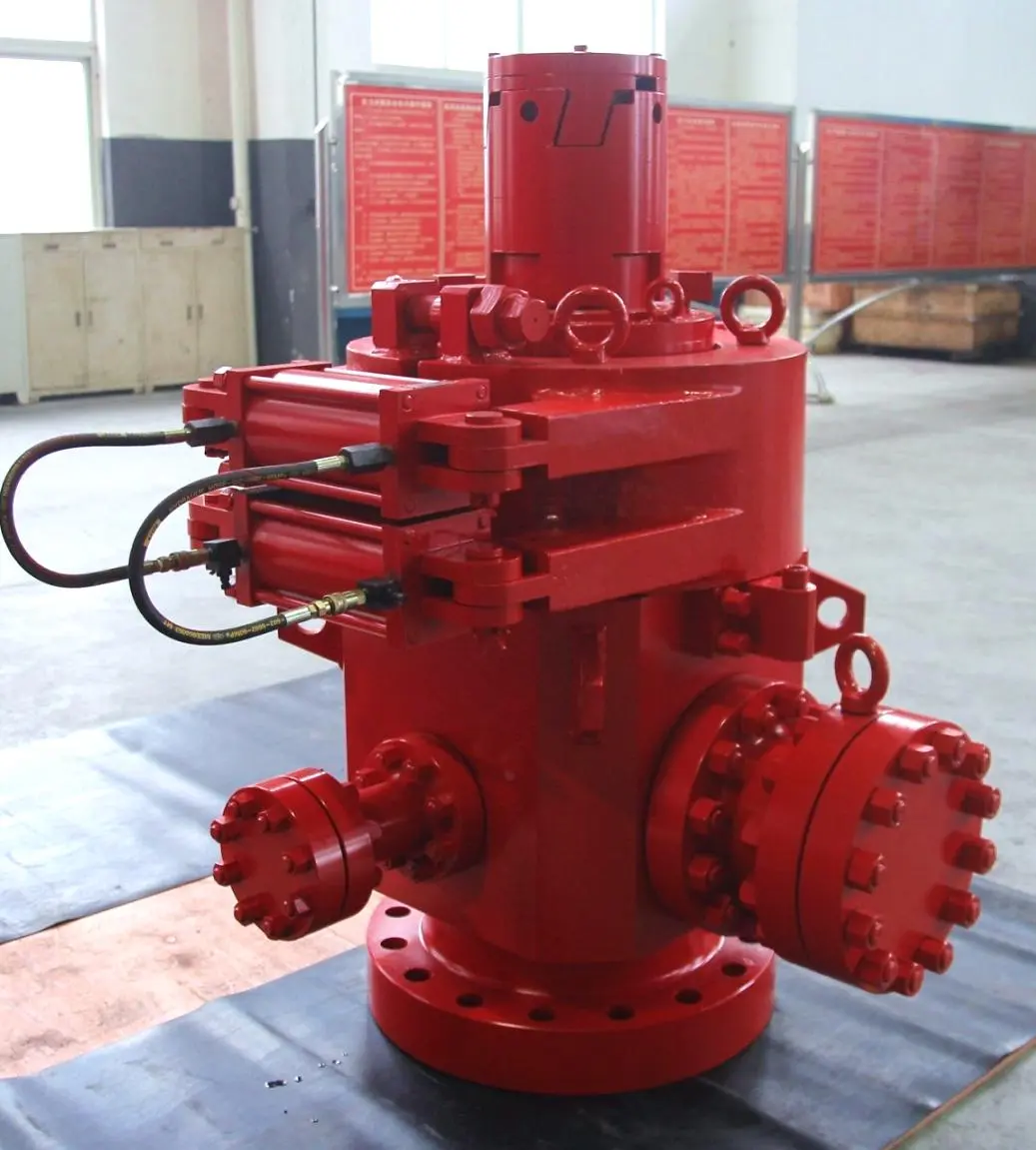

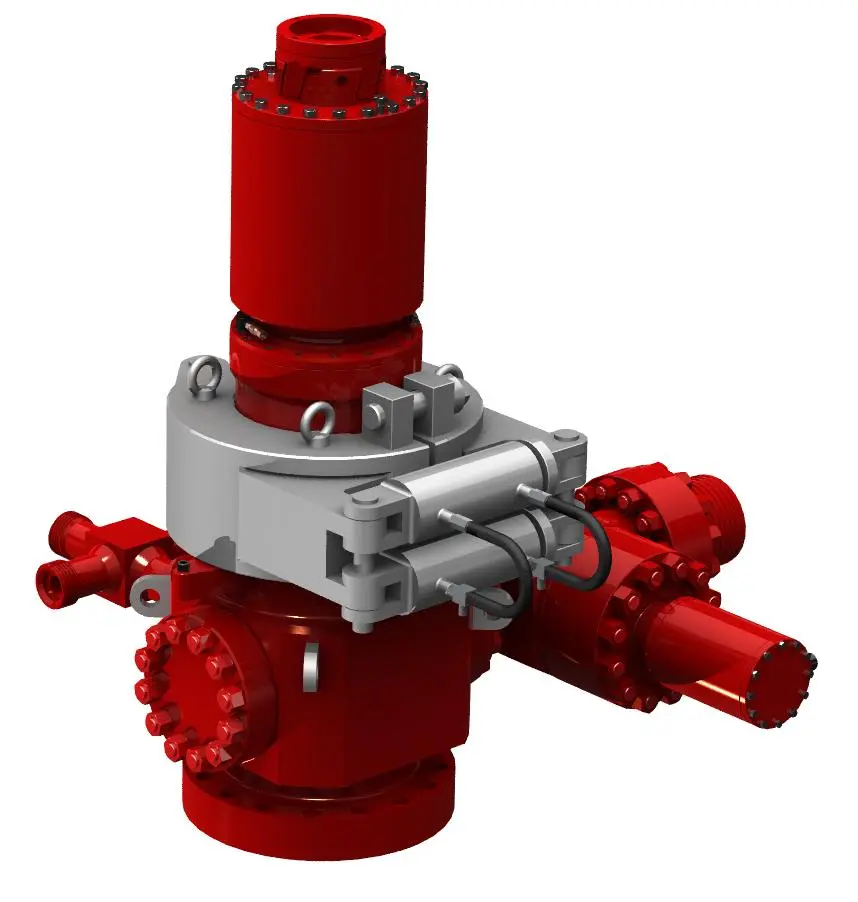

API 16RCD High-Integrity Rotating Control Device (RCD) System for MPD & UBD Operations

  • Conventional BOP stacks cannot maintain continuous dynamic annular sealing on rotating drill strings during pressurized drilling and MPD/UBD operations.
  • Built to API Spec 16RCD standards, our Rotating Control Device (RCD) system delivers robust dynamic sealing (17.5 MPa) and high-speed rotation (60–120 r/min) with integrated hydraulic control.
  • Ideal for managed pressure drilling (MPD), underbalanced drilling (UBD), and tripping under pressure with air, foam, or conventional drilling fluids.
Request a Quote Downloads

Main Advantage & Solution

  • Dynamic sealing failure and rapid bearing wear during high-speed rotating drilling under pressure.
    Solution: Advanced dynamic seal core assembly paired with dynamic oil lubrication and cooling systems, supporting continuous operations at 17.5 MPa dynamic pressure and speeds up to 120 r/min.
  • Complex wellhead integration and unsafe tripping operations under annular pressure.
    Solution: Flanged bottom interface for direct mounting above annular/ram BOPs; fully compatible with non-snubbing tripping equipment, back-pressure valves, and mud-gas separators.

Application Scenarios

  • For MPD / UBD Drilling Contractors: Continuous annular sealing and return mud diversion during managed pressure drilling, underbalanced drilling, and air/foam drilling.

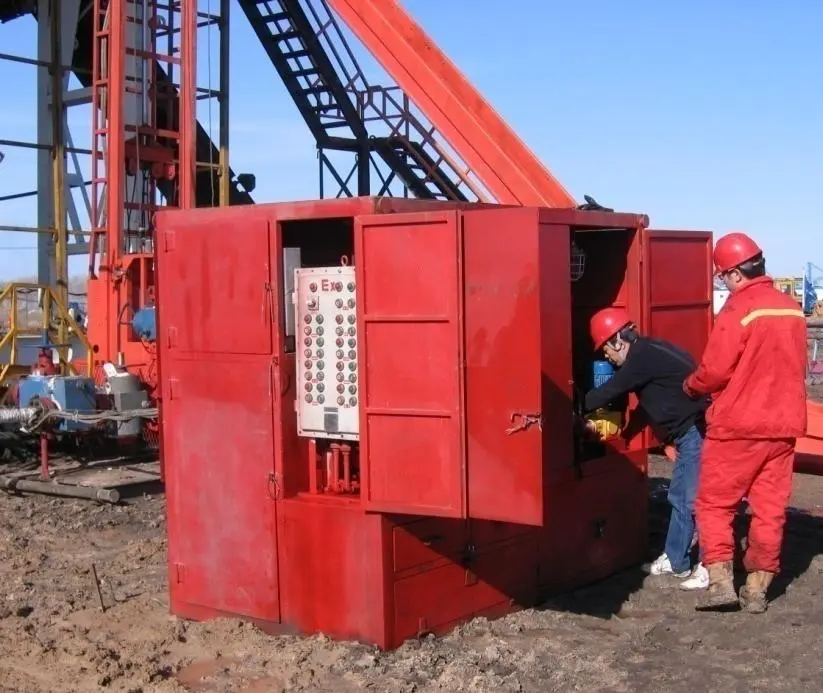

  • For Well Control & Snubbing Services: Secure containment during pressurized drill pipe rotation and stripping/tripping operations in combination with hydraulic BOP stacks.

Technical Specifications

SpecificationDetails
Working Pressure (Dynamic / Static)Dynamic Seal: 17.5 MPa (~2,500 Psi) / Static Seal: 35 MPa (~5,000 Psi)
Central Pipe Bore220 mm ~ 360 mm
Rated Rotational Speed60 r/min ~ 120 r/min
Connection TypeFlanged Connection
Working MediumAir, Foam, and various Drilling Fluids

Our Advantages

Factory Strength

As a premium API certified manufacturing powerhouse, our facilities are equipped with heavy CNC machining clusters and automated anti-corrosion alloy cladding systems, fully backed by an in-house CNAS laboratory capable of up to 300MPa pressure tracking and internationally witnessed PR2 performance testing.

Customization Service

Customized RCD bearing assemblies and sealing elements tailored to specific drill pipe sizes; custom hydraulic control skid configurations; specialized elastomer compounds for high-temperature and harsh drilling fluid chemistry.
