API 6A High-Pressure Slab Gate Valves (Manual, Hydraulic & Electric Actuated)

  • Severe fluid erosion, high differential pressure, and sand accumulation frequently lead to seat leakage and stem packing failures in wellhead valve manifolds.
  • Built to API Spec 6A and NACE MR0175, our slab gate valves feature bi-directional metal-to-metal sealing, non-rising stems, and optional hydraulic/pneumatic fail-safe actuators.
  • Ideal for Christmas trees, choke & kill manifolds, high-rate hydraulic fracturing, and fast-track MRO gate/seat repair kit replacements.
Request a Quote Downloads

Main Advantage & Solution

  • Gate & seat washouts caused by high-velocity proppants and sand during frac and flowback.
    Solution: Hardfaced slab gates and floating seats with Stellite or Tungsten Carbide cladding provide zero-leakage metal-to-metal isolation up to 25,000 Psi.
  • Need for immediate ESD (Emergency Shut-Down) protection in unmanned or high-risk wells.

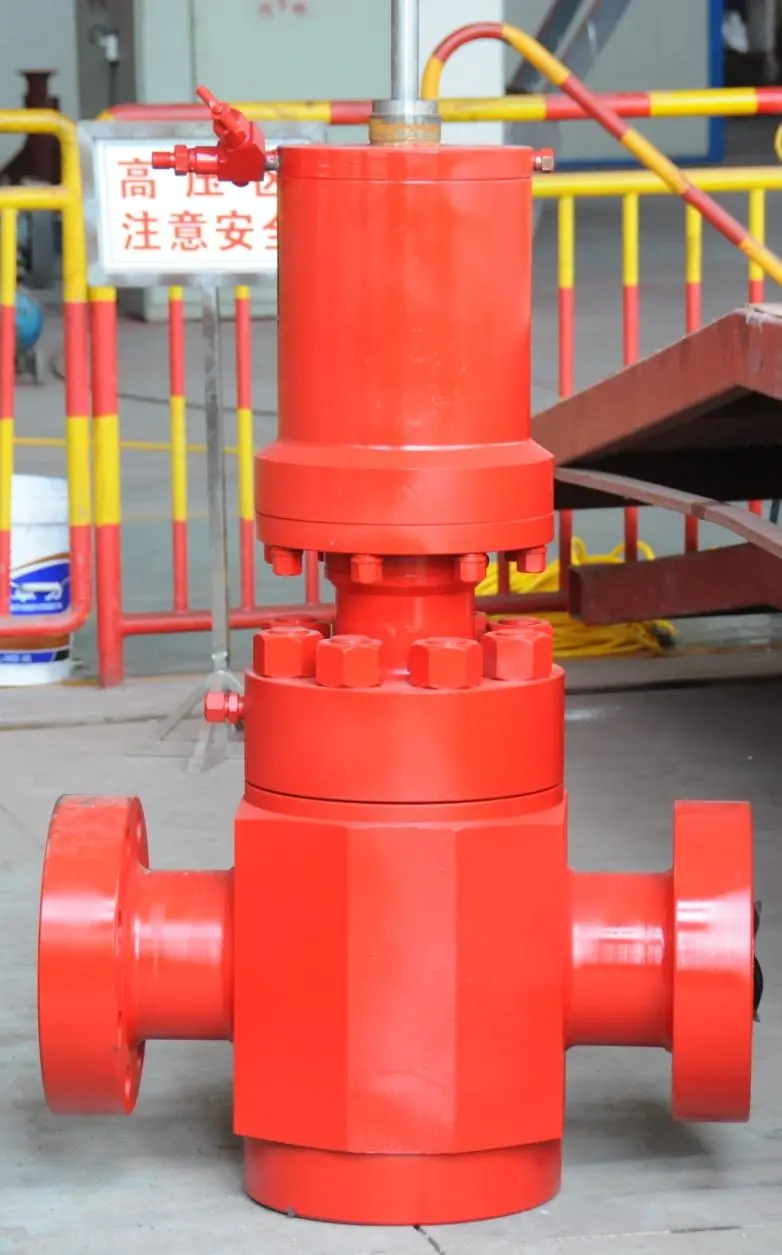

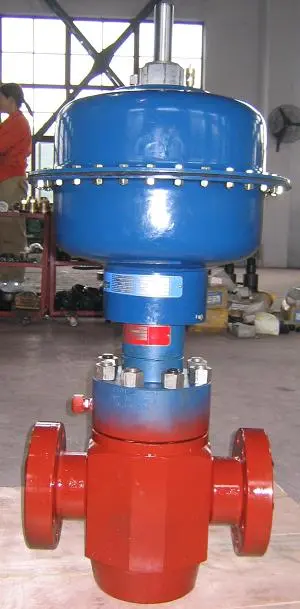

    Solution: Surface Safety Valves (SSV) feature fail-safe spring-return hydraulic/pneumatic actuators for rapid automatic valve closure upon signal loss or line pressure anomalies
  • Excessive downtime during field maintenance and trim overhauls.
    Solution: Fully interchangeable trim components (gates, seats, stems, and seal kits) designed to standard Cameron FC/FL dimensional profiles for fast online servicing.

Application Scenarios

  • Wellhead & Christmas Trees: Primary isolation valves for production and master valve blocks.
  • Hydraulic Fracturing Trees: High-bore, sand-resistant frac valves handling high proppant volume pumping.
  • Emergency Shut-Down (ESD) Systems: Automated SSVs installed on surface flowlines for safety compliance.
  • MRO Spare Parts Replacement: OEM-compatible replacement gates, seat rings, stem packings, and bonnet gaskets.

Technical Specifications

SpecificationDetails
Working Pressure2,000 Psi to 25,000 Psi (13.8MPa – 172.5MPa)
Bore Sizes1-13/16″ to 7-1/16″
Valve ConfigurationsManual Slab Gate Valve, Hydraulic Actuated Gate Valve, Surface Safety Valve (SSV), Frac Gate Valve (Anti-Sand design).

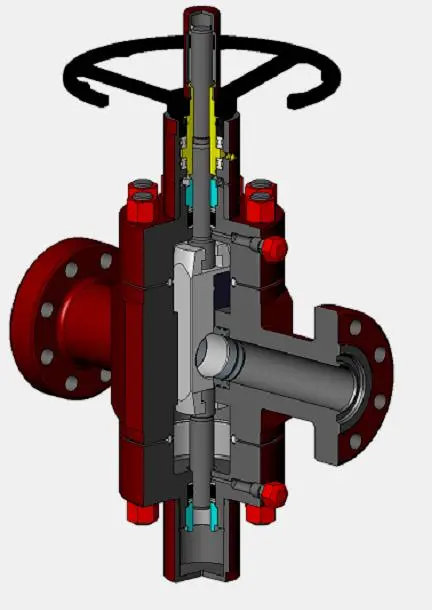

Sealing MechanismParallel Slab Gate, Metal-to-Metal Seat Seal

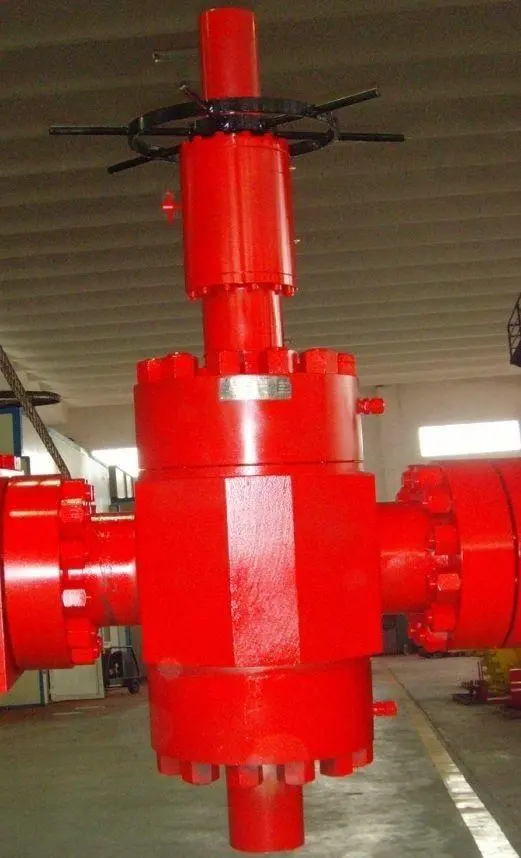

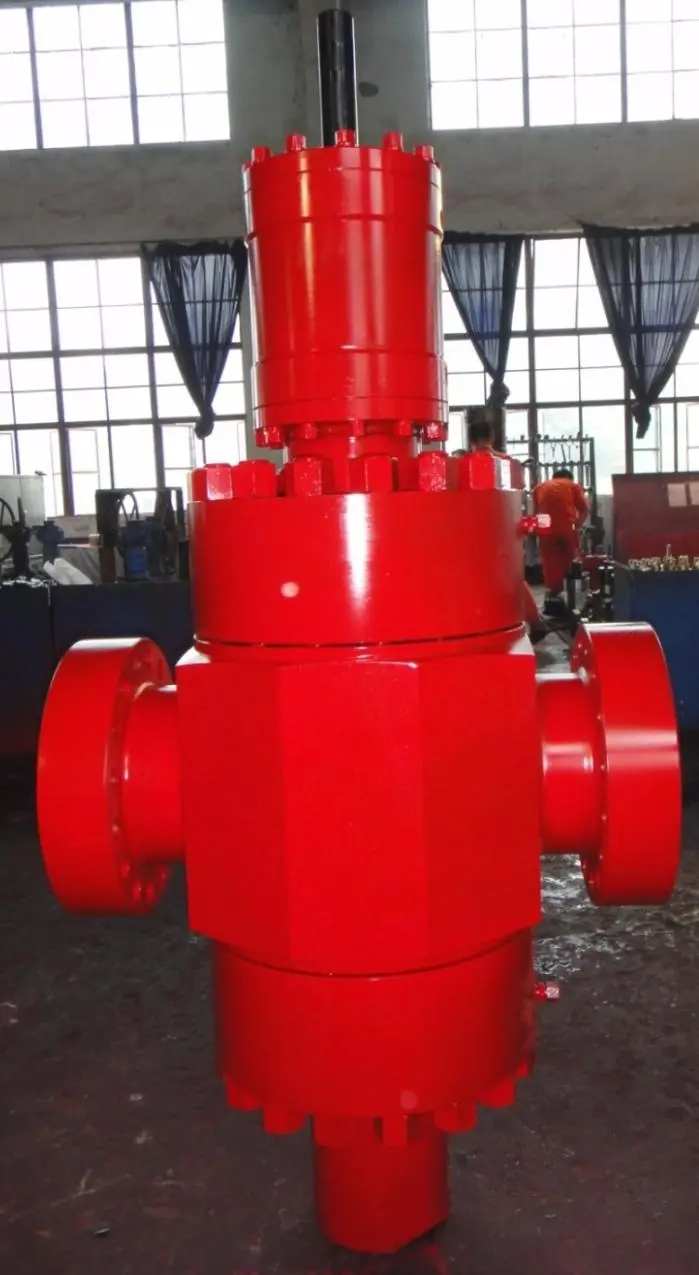

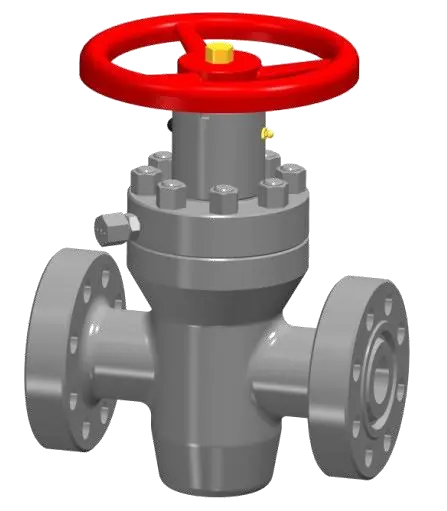

Actuation OptionsManual Handwheel (with bevel gear), Hydraulic Actuator, Electric Actuator
Product Specification LevelPSL 1 ~ PSL 4
Material ClassAA, BB, CC, DD, EE, FF, HH (Severe Sour Service)
Performance RequirementPR1 ~ PR2
Temperature ClassK.X (-60°C to 180°C)

Our Advantages

Factory Strength

As a premium API 6A, 16A, and 16C certified manufacturing powerhouse, our facilities are equipped with heavy CNC machining clusters and automated anti-corrosion alloy cladding systems, fully backed by an in-house CNAS laboratory capable of up to 300MPa pressure tracking and internationally witnessed PR2 gas performance testing.

Customization Service

Customized end connections (API flanged, studded, clamp hub), specific actuator control panels, severe sour-service CRA overlay, and rapid dispatch MRO trim repair kits.

Request a custom quote
