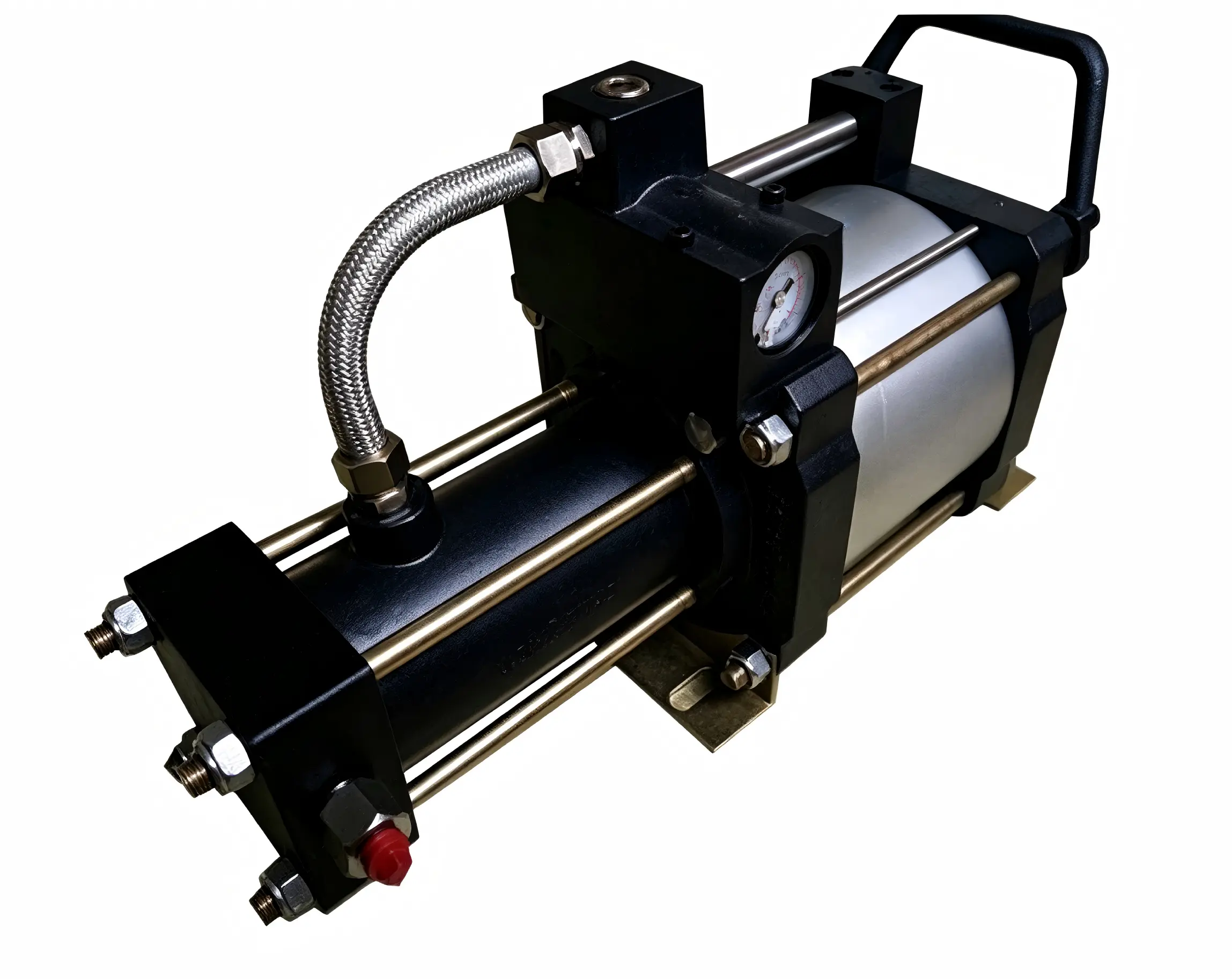

G1A Series Single-Stage Single-Acting Air-Driven Gas Booster

CDI-G1A series are single-stage single-acting air-driven gas boosters powered by compressed air. Equipped with unbalanced air distribution valve for automatic reciprocating cycle. The pump body is constructed of aluminum alloy and stainless steel with 160mm drive piston and pump head exhaust cooling structure, fitted with imported high-performance seals. Recommended drive air pressure ≤8bar, max design drive pressure 10bar. Compatible with air, nitrogen, oxygen, CO₂, argon and other industrial gases. Used as inline booster unit for gas pressure boosting, constant pressure makeup and high-pressure leak test.

Downloads

Core Advantage

Single-stage single-acting design with auto on/off function by built-in air control valve;
Robust aluminum & stainless steel construction with good corrosion resistance;
Imported sealing components for low leakage and long service life;
Full pneumatic design without electric motor, intrinsically safe for flammable gas working site;
Pump head exhaust cooling enables continuous long-hour operation;
Unified G1/2 drive port across full model range, easy for standalone or skid-mounted integration.

Application

Leakage & burst test for valves, pressure vessels, piping, heat exchangers and gas cylinders;
Constant pressure replenishment for gas storage tank & low-pressure air compressor upgrading;
High-pressure air supply for CNC clamping, pneumatic marking/inkjet equipment & CMM instruments;
Gas filling for autoclave, hydraulic accumulator, cable pressurization, safety valve calibration & new energy component pressure testing.

Technical Specifications

CDI Model	Boost Ratio	Min Inlet PA		Max Inlet PA		Max Outlet PB		Drive Port	Gas Inlet	Gas Outlet	Max Flow(L/min,PL=6bar)
CDI Model	Boost Ratio	bar	psi	bar	psi	bar	psi	Drive Port	Gas Inlet	Gas Outlet	Max Flow(L/min,PL=6bar)
CDI-G1A-02	2:1	1.7	24.65	16	232	16	232	G1/2	ZG1/2	ZG1/2	960(PA=6 bar)
CDI-G1A-05	5:1	3.5	50.75	40	580	40	580	G1/2	ZG1/2	ZG1/2	360(PA=6 bar)
CDI-G1A-06	6:1	4.5	65.25	48	696	48	696	G1/2	NPT3/8	NPT3/8	110(PA=6 bar)
CDI-G1A-10	10:1	5.5	79.75	80	1160	80	1160	G1/2	NPT3/8	NPT3/8	196(PA=20 bar)
CDI-G1A-25	25:1	10	145	200	2900	200	2900	G1/2	NPT1/4	NPT1/4	81(PA=20 bar)
CDI-G1A-40	40:1	15	217.5	320	4640	320	4640	G1/2	NPT1/4	NPT1/4	49(PA=20 bar)
CDI-G1A-60	60:1	25	362.5	480	6960	480	6960	G1/2	NPT1/4	NPT1/4	61(PA=40 bar)
CDI-G1A-100	100:1	35	507.5	800	11600	800	11600	G1/2	NPT1/4	M14×1.5	39(PA=20 bar)

Optional Customization & Accessories

Custom Seals: Oil-free oxygen compatible seal (suffix -O2), FFKM corrosive-resistant seal for aggressive gas media
Optional Parts: High-pressure gauge, pressure regulating valve, high-pressure buffer tank, inlet/outlet filter and pre-assembled skid-mounted booster package
