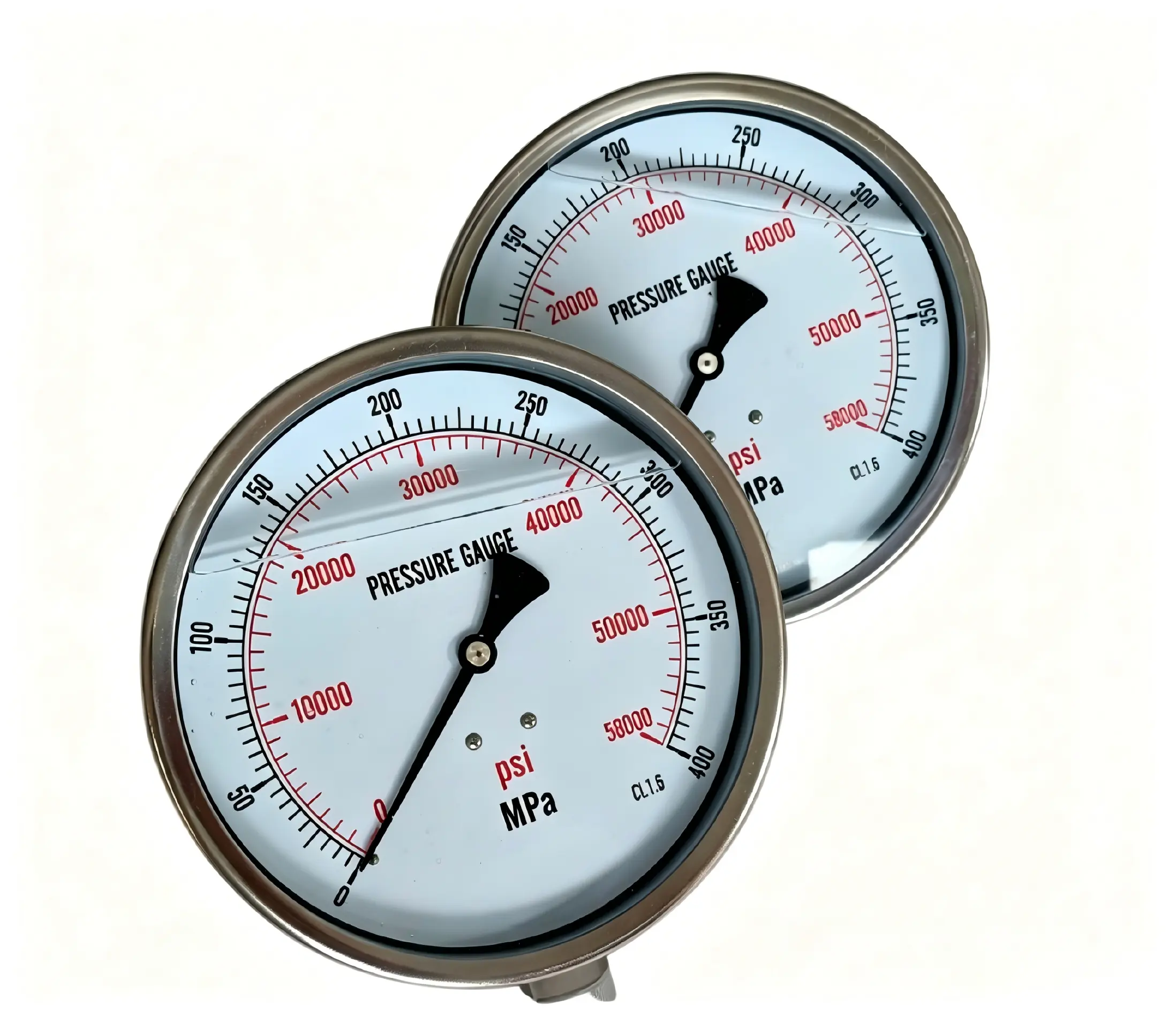

High Precision Pressure Gauge

Manufactured in compliance with EN837-1 standard, this gauge features full stainless steel construction and glycerin filling. With accuracy class CL1.6, it precisely measures pressure of low-corrosive, non-crystallizing, non-solidifying and low-viscosity liquid, gas and steam. Available in radial and back mount styles with multiple dial sizes and extensive pressure ranges. It delivers stable performance against vibration and impact, ideal for general industrial pressure monitoring.

Request a Quote Downloads

Core Advantage

  • Superior Corrosion Resistance: Adopts 316/316L stainless steel for long service life under mildly corrosive working conditions.
  • Excellent Vibration Resistance: Internal glycerin filling cushions shock and vibration, ensuring steady pointer movement and clear readings.
  • High Measurement Accuracy: Accuracy class CL1.6 (±1.6% FS) guarantees reliable detection results.
  • Universal Connection: Equipped with standard G1/2M thread for easy installation and pipeline connection.
  • Diversified Mounting Options: Supports radial and back panel mount to fit various installation spaces and equipment.
  • Wide Media Compatibility: Suitable for liquid, gas and steam with low corrosivity.

Application

CDI liquid filled stainless steel pressure gauges are widely used in petroleum, chemical, oil refining, hydraulic system and laboratory industries. They are applied for real-time pressure monitoring on industrial pipelines, production equipment and test devices, and work steadily in vibration and mildly corrosive environments.

Technical Specifications

Model Coding Rule

Model Format: CDI-TGS + Dial Size + Pressure Range – Mount Type

  • Series Code: CDI-TGS (CDI Liquid Filled Stainless Steel Pressure Gauge Series)
  • Dial Size: 63mm, 100mm, 150mm
  • Pressure Range (MPa): 1.0, 1.6, 2.5, 4.0, 6.0, 10, 16, 25, 40, 60, 100, 160, 200, 250, 300, 400, 500
  • Mount Type: A = Radial Mount; E = Back Panel Mount
Pressure Scale Unit

Dual scale in MPa and psi. Common psi ranges: 10000psi, 20000psi, 30000psi, 40000psi, 50000psi, 58000psi.

Connection Dimensions

Medium Pressure Connection
Tube O.D.Thread SpecBore Size (mm)
1/4″ O.D.7/16-20UNEΦ4.80, Φ3.20
3/8″ O.D.9/16-18UNEΦ7.80, Φ5.20
9/16″ O.D.13/16-1600FΦ12.80, Φ8.00
High Pressure Connection
Tube O.D.Thread SpecBore Size (mm)
1/4″ O.D.9/16-18UNFΦ4.80, Φ2.40, Φ3.20
3/8″ O.D.3/4-1ALIFΦ5.20
9/16″ O.D.1 1/6 -12UMFΦ11.00, Φ6.40, Φ7.20
Basic Specifications
ItemParameter
StandardEN837-1
Accuracy ClassCL1.6 (±1.6% Full Scale)
Standard ThreadG1/2M
Damping LiquidGlycerin
Main Material316 / 316L Stainless Steel
Mounting TypeRadial, Back Panel
