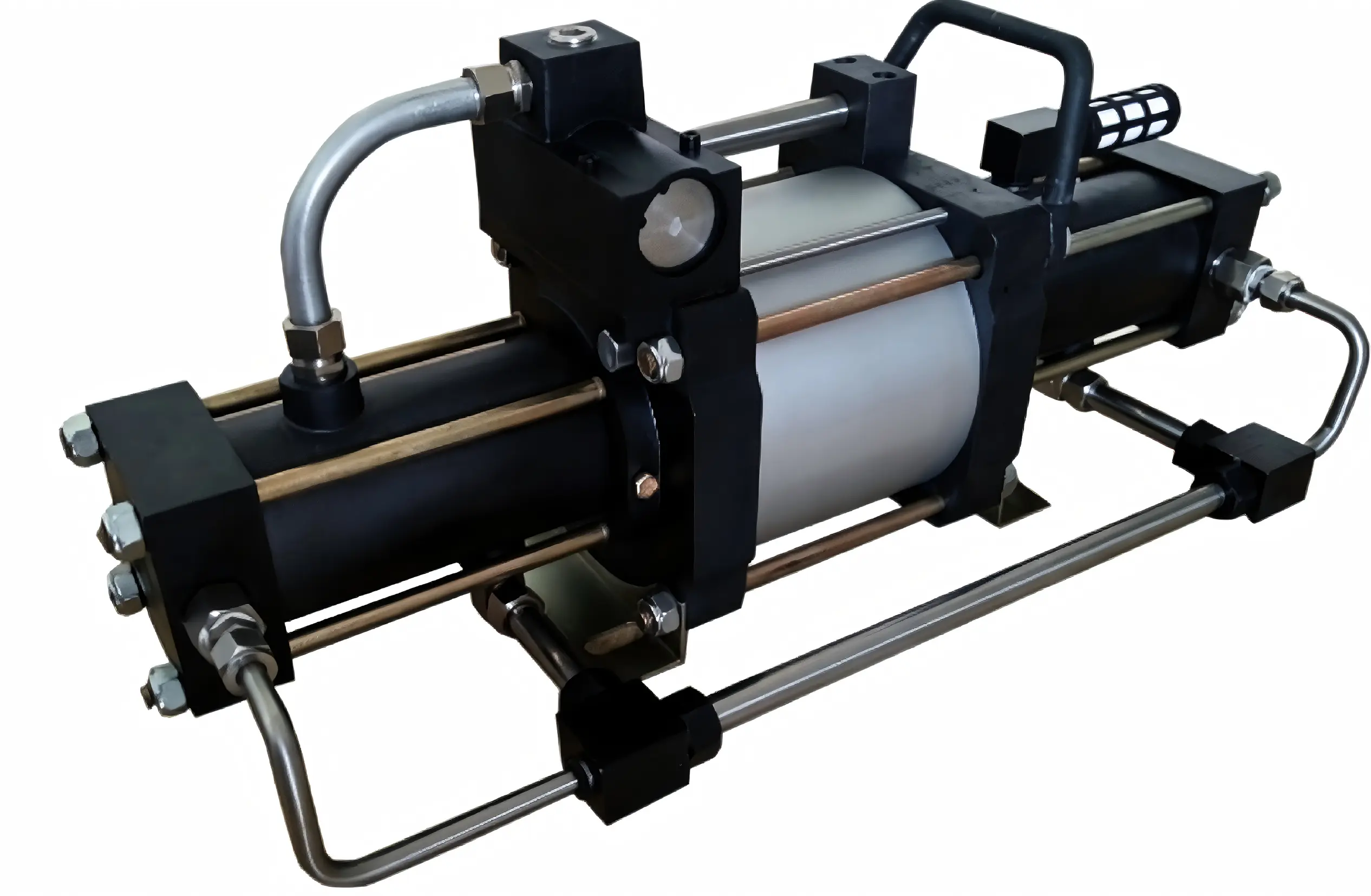

G2T Series Two-Stage Air-Driven Gas Booster

CDI-G2T series are modular two-stage air-operated gas boosters powered by standard compressed air. The unit boosts various industrial gases from low inlet pressure to required high output pressure and can be directly plumbed inline into existing gas pipelines. Constructed from high-grade aluminum alloy and stainless steel with a 160mm drive piston and dual pump-head exhaust cooling design, the booster delivers stable continuous operation even under long-duration high-pressure working conditions. It is compatible with air, nitrogen, oxygen, CO₂, argon and most common industrial & inert process gases for high-pressure gas supply, leak testing and machine auxiliary pressurization.

Downloads

Core Advantage

Pneumatic Drive & Intrinsically Safe: Motor-free air-driven design generates no electric sparks, safe for flammable & explosive gas environments. Recommended drive air pressure ≤8 bar, max allowable drive pressure 10 bar.
Automatic Reciprocating & Pressure Holding: Built-in unbalanced air distribution valve enables fully automatic cycling; the unit stops automatically once set target pressure is reached and restarts for pressure replenishment upon system pressure drop for steady output with minimal pressure fluctuation.
Premium Sealing Components: Imported high-performance custom seals feature excellent resistance to chemical corrosion, temperature variation and media erosion for low failure rate and extended service lifespan.
Wide Working Condition Coverage: Multiple boost ratio options cover low-pressure makeup to ultra-high-pressure output; dual ratio models support flexible switch for varying inlet gas pressure requirements.
Plug & Play Installation: Compact standalone unit requires no oil tank or electrical control cabinet. Direct pipe connection on inlet & outlet ports enables fast on-site commissioning with convenient daily maintenance.

Application

Hydrostatic & Pneumatic Leak / Burst Testing：Factory air tightness & pressure burst test for valves, pressure vessels, heat exchangers, pipeline fittings and gas cylinders.
High-Pressure Gas Makeup & Storage Tank Charging：Constant pressure replenishment for gas storage tanks, outlet pressure upgrade for standard air compressors, lab high-purity gas supply and secondary filling for specialty gas cylinders.
Industrial Machine Auxiliary Air Supply：High-pressure air source for CNC clamping systems, pneumatic marking/bundling/inkjet equipment, CMM measuring instruments and pneumatic actuator power supply.
New Energy & Special Process Industry：Nitrogen/hydrogen pressure retention test, PV manufacturing high-pressure purging, mining pneumatic system and aerospace component high-pressure leak inspection.

Technical Specifications

Definition: Pₗ=Drive Air Pressure; Pₐ=Inlet Gas Pressure; Pᵦ=Outlet High Pressure

CDI Model	Boost Ratio	Min Inlet Pₐ		Max Inlet Pₐ		Max Rated Outlet Pᵦ		Drive Port	Gas Inlet	Gas Outlet	Max Flow(Lₙ/min, Pₗ=6bar)
CDI Model	Boost Ratio	bar	psi	bar	psi	bar	psi	Drive Port	Gas Inlet	Gas Outlet	@Specified Pₐ
CDI-G2T-25	25:1	0.1	1.45	10	14.5	200	2900	G1/2	NPT3/8	NPT1/4	136 (Pₐ=8bar)
CDI-G2T-40	40:1	0.1	1.45	10	14.5	320	4640	G1/2	NPT3/8	NPT1/4	124 (Pₐ=8bar)
CDI-G2T-10/60	10:160:1	0.1	1.45	10	14.5	480	6960	G1/2	NPT3/8	NPT1/4	84 (Pₐ=8bar)
CDI-G2T-25/60	25:160:1	10	14.5	25	362.5	480	6960	G1/2	NPT3/8	NPT1/4	80 (Pₐ=15bar)
CDI-G2T-100	100:1	0.1	1.45	10	14.5	800	11600	G1/2	NPT3/8	M14×1.5	63 (Pₐ=8bar)

Optional Customization & Accessories

Custom Seals: Oil-free oxygen compatible seal (suffix -O2), FFKM corrosive-resistant seal for aggressive gas media
Optional Parts: High-pressure gauge, pressure regulating valve, high-pressure buffer tank, inlet/outlet filter and pre-assembled skid-mounted booster package
