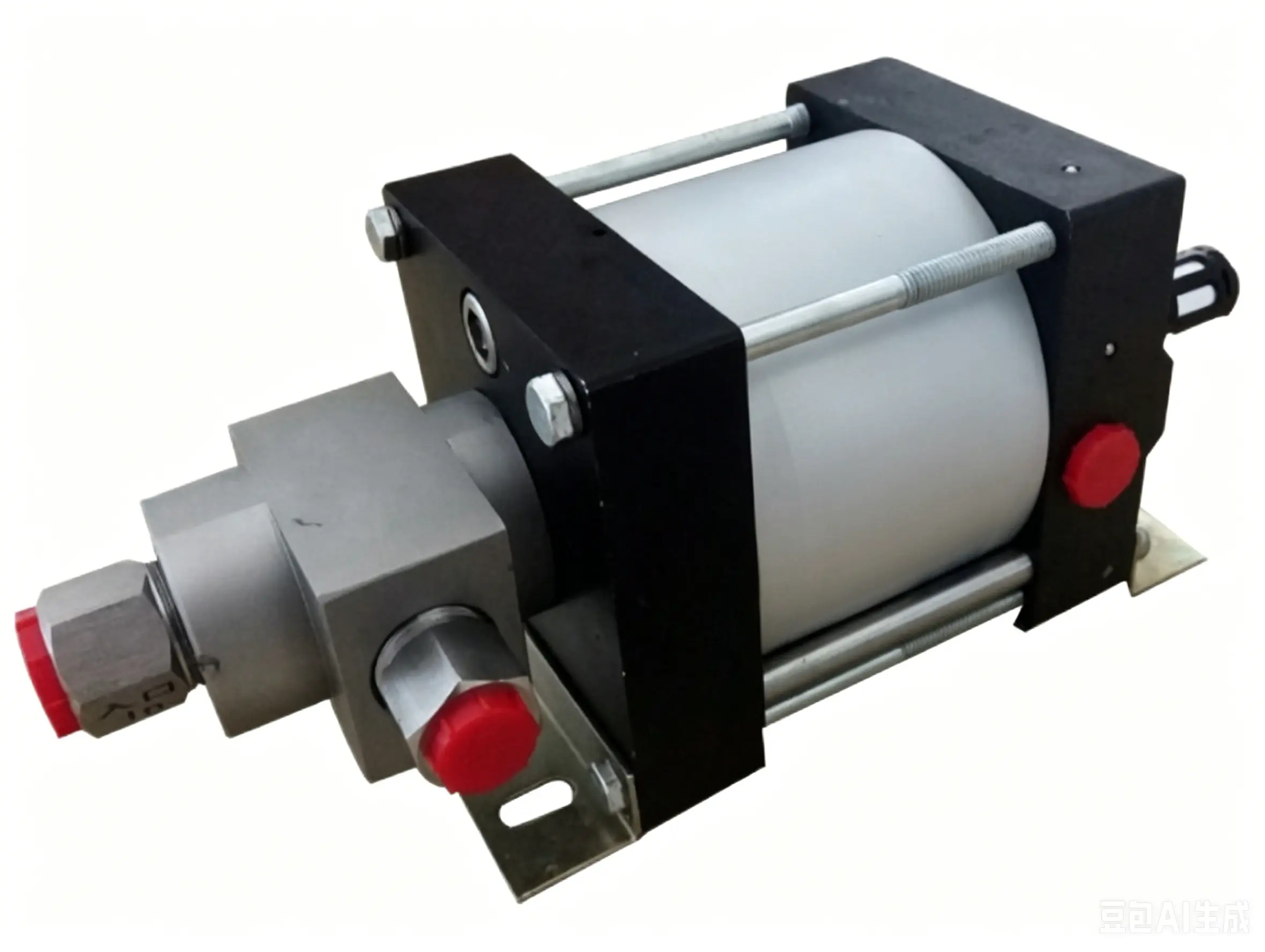

L1S Series Single-Acting Air-Driven Liquid Booster Pump

CDI-L1S single-acting air-driven liquid booster adopts built-in single air-controlled unbalanced distribution valve for automatic reciprocating cycle. The air drive body is made of black oxidized aluminum alloy for anti-rust; wetted body can be carbon steel or stainless steel as per process fluid. All seals are imported premium parts. Drive piston diameter:100mm, max allowable drive air 10bar, recommended operating drive pressure ≤8bar for long service life. Driven by compressed air to generate high hydraulic pressure.

Request a Quote Downloads

Core Advantage

  • Auto on-off cycling design; pump stops automatically at set pressure and restarts for pressure makeup once leakage occurs;
  • Black oxidized aluminum air housing with good corrosion resistance, customizable wetted material;
  • Imported sealing set ensures stable sealing performance and low failure rate;
  • Hydraulic output changes proportionally with inlet drive air pressure for easy regulation;
  • Spark-free full pneumatic construction, safe for explosive hazardous area; Min startup drive pressure:3bar, standard working range:3~8bar;
  • Compact lightweight design with unified G3/8 drive port for all models, easy installation & maintenance.

Application

  • Static & burst pressure testing for valves, pipe fittings and pressure vessels;
  • Hydraulic clamping power for valve test bench fixture;
  • Lubricant filling for mechanical equipment & refrigerant cylinder filling;
  • High-pressure liquid transfer in flammable & dangerous working environments.

Technical Specifications

CDI ModelBoost RatioOutlet Pressure(bar)Outlet Pressure(psi)Flow(L/min)Drive PortLiquid InletLiquid Outlet
CDI-L1S-66:14869616.57G3/8NPT1/2NPT1/2
CDI-L1S-1616:112818566.47G3/8NPT1/2NPT1/2
CDI-L1S-2525:120029004.14G3/8NPT1/2NPT3/8
CDI-L1S-5050:140058002.03G3/8NPT3/8NPT3/8
CDI-L1S-6868:154478881.49G3/8NPT3/8NPT3/8
CDI-L1S-100100:1800116001.03G3/8NPT3/8NPT3/8
CDI-L1S-150150:11200174000.66G3/8NPT3/8NPT3/8
CDI-L1S-270270:12160313200.37G3/8NPT1/4M14×1.5

Optional Customization & Accessories

  • Boost Ratio = Drive piston area ÷ Hydraulic plunger area;
  • Rated outlet pressure is static max value under 8bar(116psi) drive air;
  • Flow value is tested at 6bar(87psi) drive air with zero backpressure on liquid outlet;
  • Minimum startup drive air pressure:3bar(43.5psi).
